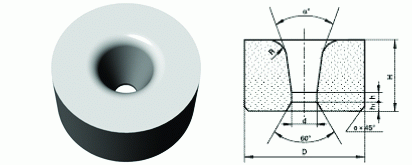

Tungsten Carbide Dies type 13
mm
| Type | Dimensions | ||||||
| D | H | d | h | h1 | R | αo | |
| 13- | 30.00 | 21.00 | 3.70~9.60 | 1.50~4.00 | 3.00 | 5.00 | 14 |
| 40.00 | 25.00 | 10.00~15.00 | 5.00 | 4.00 | 16 | ||
| 50.00 | 28.00 | 16.00~24.50 | 5.50~6.00 | 4.50 | |||
| 60.00 | 35.00 | 25.00~34.50 | 7.00~7.50 | 6.00 | 6.00 | 18 | |
| 75.00 | 35.50~43.50 | 8.00 | |||||
| 90.00 | 45.00~57.00 | 9.00~10.00 | 20 | ||||
| 110.00 | 40.00 | 59.00~69.00 | 10.00~11.00 | ||||
| 140.00 | 50.00 | 71.00~84.00 | 12.00 | ||||
