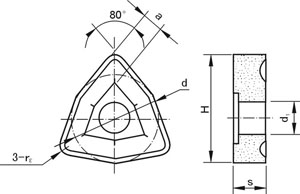

Mecánicamente Sujetos al Suelo Inserta-Tipo T3V
 |
 |
?
Tipo |
Dimensión(mm) |
Aprox Unidad de Peso(g) |
||||||||
d |
s |
r |
a≈ |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
|
T31005V |
10.0 |
3.5 |
0.5 |
2.4 |
4.2 |
12.6 |
4.4 |
4.3 |
3.9 |
3.5 |
T31310V |
13.0 |
4.5 |
1.0 |
3.4 |
5.2 |
16.1 |
9.5 |
9.4 |
8.3 |
7.3 |
T31610V |
16.0 |
5.5 |
1.0 |
4.4 |
6.2 |
20.0 |
17.7 |
17.5 |
17.3 |
17.2 |
T31612V |
16.0 |
5.5 |
2.0 |
4.4 |
6.2 |
19.5 |
18.3 |
18.0 |
13.6 |
13.2 |
T31920V |
19.0 |
7.0 |
2.0 |
5.4 |
7.2 |
23.3 |
31.8 |
31.5 |
24.5 |
24.0 |
